● Solution D - Solución de control de accesos ( un controlador y 2 puertas)

Installation

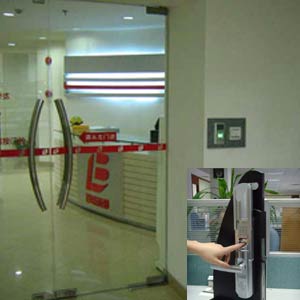

La Compañia D have one main gate, the main gate has two glass doors. There is another wooden door for the Manager. They want the Access Controller on main gate can control the door and at the same time, it should support the Time & Attendance system too.
For the wooden door, they want the fingerprint door lock. So the manager can open and close the door without key.
In this solution, they need one BF399I and one BF400. The BF399I should need one unit of extra relay to support the EM LOCK.

And the BF399I should be connected to the PC server by TCPIP. So that the records can be download to the PC Software.
Then you can check out the report to view who and when come in or leave .
At the same time, you can get the attendance report.

Diagrama

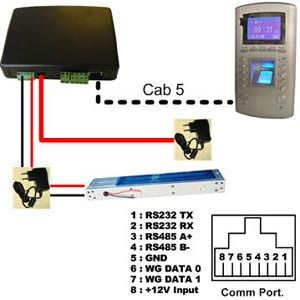

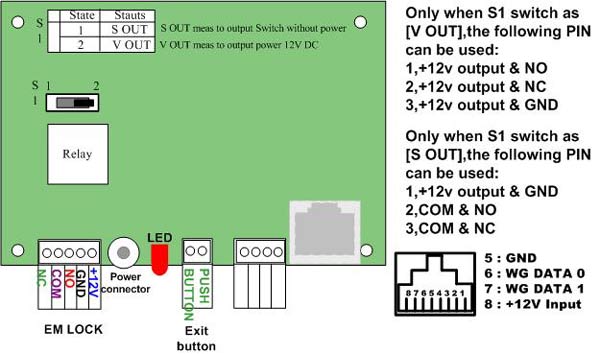

Instalación mediante T2-399I y T2-909(Simple relé)

● Solución E - Sistema de control de accesos (2 terminales con una puerta)

Instalación

La Compañia E want to install the Fingerprint device working for Access Controller and Time Attendance system together..
All the employees should identify their fingers to enter into the door from outside. and they should check their fingerprint from inside to leave from the door.. Then the times should be recorded in to the database.

And then the PC software should support to download all the event records from the DEVICE to the Server SQL DATABASE, And at the same time, all the employee's Fingerprints can be download into the Server SQL databasa and then the fingerprints can be transfered into other DEVICES too.

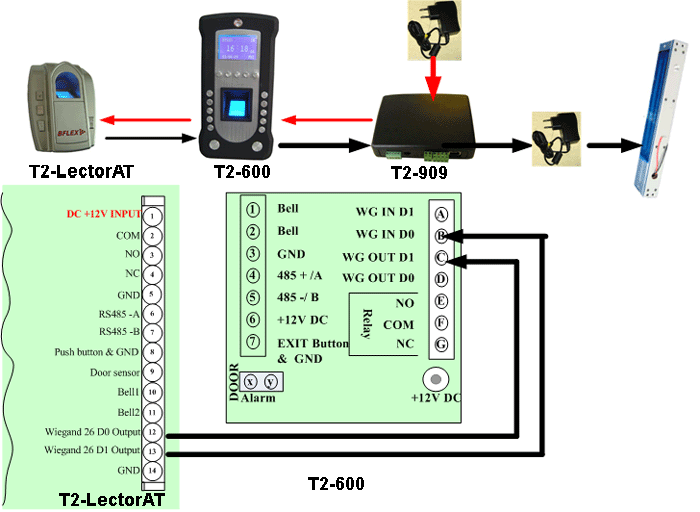

Diagram
