Home >> Product >> BF42ID
BF42ID - Proximity card reader with Wiegand 26 output


All the security project engineers know that when they want to do the solution for Access Controller system, they should need the Wiegand 26 reader to be connected to the Access Controller.

Actually you can find out lots of the similar reader from the world , Because that's the standard reader in the world.
Now BFLEX can offer two different wiegand 26 reader2, one is BF42ID.

Why you need that from BFLEX?

Because we design our own Fingerprint devices and Access Controller System and Application software system since more then 8 years ago. So we know what is the normally problem and we know what will make the reader become wrong after little long working time. So we can do the better on that.

Specification for BF42ID
Antenna 52mm*88mm
Dimensions 88mm×108mm218mm, 0.5kg
Card read Time < 0.02 seconds
Valid distance 0-8CM
Interface Wiegand 26 (Data 0 and Data1)
DC 12V input
Power Supply 12VDC@1A
* This model offers ONE year warranty period for manufacturing defects.
Installation : Connecting by Wiegand 26

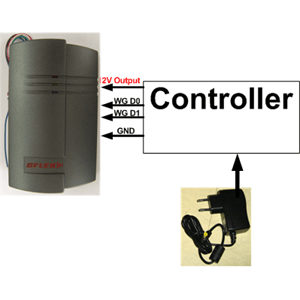

Installation of BF42ID VIA Wiegand 26 output

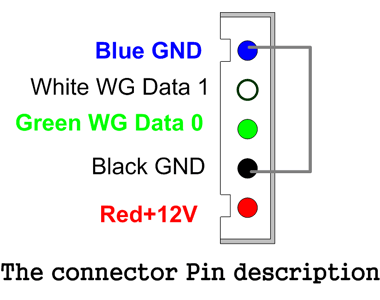

the connector of wiegand 26 output on BF42ID
