When you do Access control Project, you need the relay to drive the E-LOCK.

There are lots of different kinds of the Access Relay box in the market too. Our BFLEX Access Relay box can support not only to all BFLEX readers, but also to other reader in the market.
Why need the Access Relay box?
Because there are lots of the Access Control Devices in the market can support different functions. But most of them need the Relay to control other devices.
So for the professional Access Project, you need the relay,
BFLEX Relay box can support BFLEX devices very well.

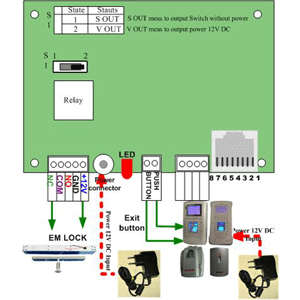

Two pins for EXIT BUTTON
Three Pins for E-lock ( NO,COM,NC)

Two pins for DC12V output with COM together to the LOCK.
One connector for DC12V input
One switch to set the relay output 12V DC power directly or relay signal only.

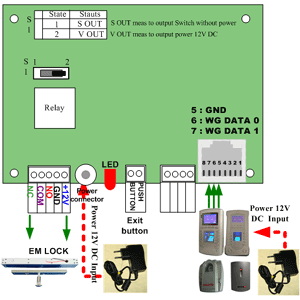

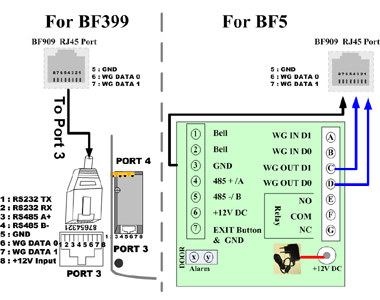

One RJ45 port for Wiegand 26 input.
