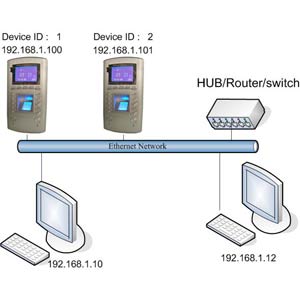

Solution A - As Time Attendance System ( Less
then 200Employees) |
 |
| Installation |
|
|
|
The Company A want to install the Fingerprint
device working for Time & Attendance system.
There are around 200 employees .So we suggest
2 units devices working together.So that there
will be no problems when all of 200 employees
come together to identify almost at the same time.
All the employees should identify their fingers
every day for IN and OUT.

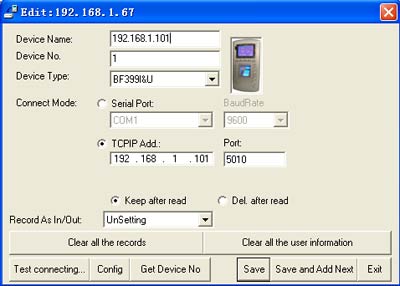

And then the PC software can download all the
event records from the DEVICE to the PC DATABASE,
And at the same time, all the employee's Fingerprints
can be download into the PC database and then
the fingerprints can be transfered into other
DEVICE too.
Now, there are lots of the companies using this
solution in the world since 2001.
|
|
|
| |
| Diagram |
|
|
|
| ●

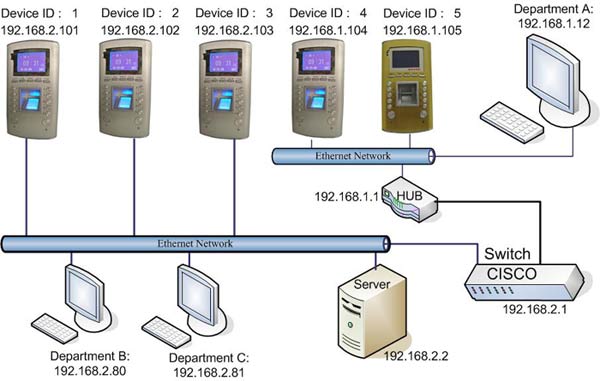

Solution B - As
Time Attendance System ( More then 500 Employees) |
|
| Installation |
|
|
|
The Company B want to install the Fingerprint
device working for Time & Attendance system .
There are more then 500 employees .So we suggest 5 devices
working together.
All the employees should identify their fingers every
day four times for IN and break out and break in and
OUT.

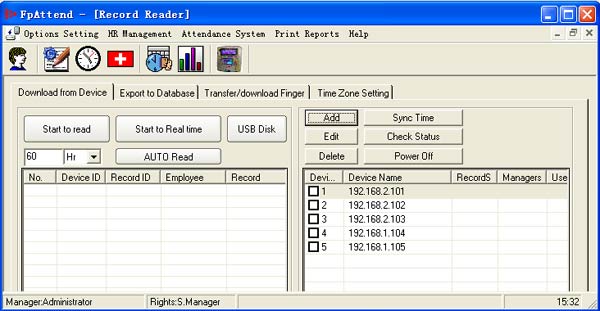

And then the PC software can download all the event
records from the DEVICE to the Server SQL DATABASE,
And at the same time, all the employee's Fingerprints
can be download into the Server SQL databasa and then
the fingerprints can be transfered into other DEVICES
too.
BFLEX SOFTWARE can support SQL DATABASE and it can support
many different department managers run the software
at the same time with the different account.
|
|
|
| |
| Diagram |
|
|
|
|
| |
| ●

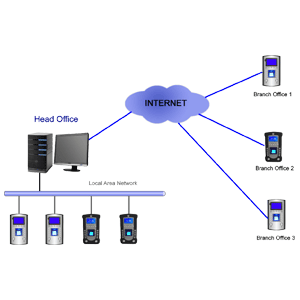

Solution C |
|
| Installation-
As Time Attendance system working (VIA INTERNET
By Web server) |
|
|
|
The Company C is a big Group company. They have
many branchs in different cities and countries, All
of them are working together by internet (some of them
has not the fixed Public IP address..
Now they want to manage all the attendance system and
fingerprint templates By Internet, it means that they
should have the time records from web server realtime,
and then they can have the attendance report by the
application software anytime.

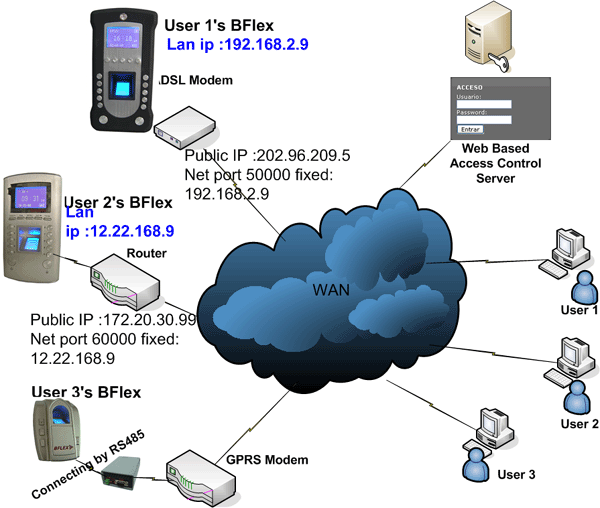

.In this solution, the only important point is on the
ADSL MODEM or Router. You should set the correct setting
on the GATEWAY and DNS, and you should set the correct
NET PORT to fix the fingerprint device's IP.
|
|
|
| |
| Diagram |
|
|
|
|
|

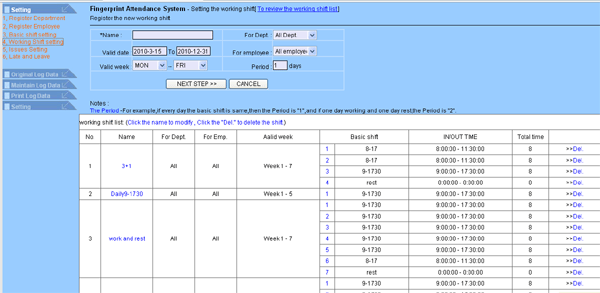

the web attendance system
|
| |
| |
